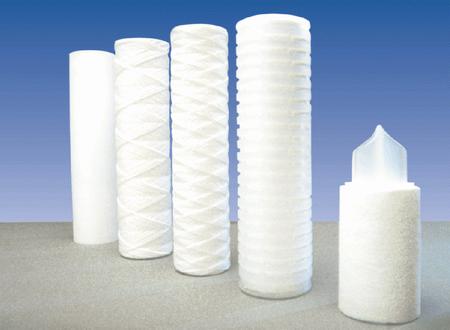

Honeycomb filter element is made by precisely winding textile fiber yarn on a porous skeleton, controlling the winding density of the filter layer and the shape of the filter holes to produce filter elements with different filtration accuracies.

Can effectively remove suspended solids, particles, etc. from liquids;

Can withstand high filtration pressure;

The filter aperture is large outside and small inside, with excellent deep filtration effect;

The filter element has good compatibility; The filter element can be made of various materials to meet the needs of liquid filtration.

Purpose:

Suitable for filtering tap water, well water, food and beverage water, domestic water, cooling circulating water, boiler water supply, oilfield repair fluids and water injection, organic solvents, electroplating solutions, oils, paints, inks, pharmaceutical products, etc.

Main technical parameters:

Outer diameter is 65-2mm, inner diameter is 29 1mm

Length 250 2mm (254), 500 2mm (508), 750 2mm (762), 1000 2mm (1016)

Pressure resistance 0.5MPa, temperature resistance 60 ℃ (polypropylene skeleton)

Nominal accuracy and flow rate:

公称精度（μm）	初始精度（μm）	最大颗粒（μm）	水流量（L/min）
1	10-20	30	15
3	20-30	38	20
5	25-40	40	25
10	30-50	50	30
20	35-60	60	32
30	40-70	70	36
50	55-80	80	40
75	75-105	110	45
100	110-15	160	50

Note:

1. The filtering efficiency with initial precision is N=95%

2. The filtration efficiency of the largest particle is N=99%

3. The precision of the filter element gradually increases during cyclic filtration

4. This flow rate value is the flow rate value of each nominal accuracy when filtering water with a 2500mm long polypropylene fiber wire wound around the core under a pressure difference of P=0.0015MPa.
